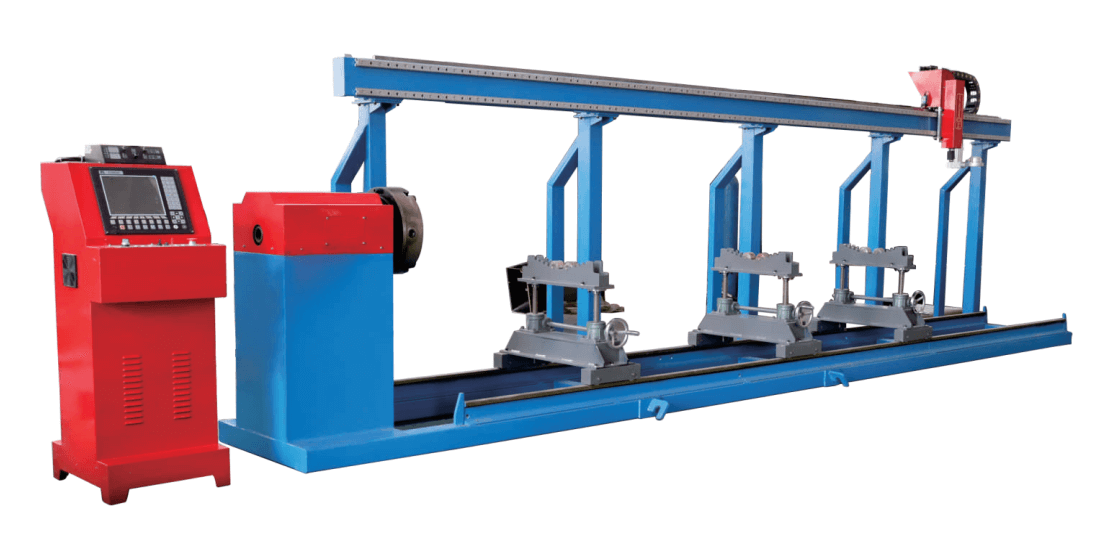

CNC circular tube cutting machine
Product parameter
| Title | CNC circular tube cutting machine | |||
| Type | GBNC3000 | GBNC6000 | GBNC3000 | GBNC6000 |
| Type of Chuck motor | 86 Series 120 Stepping Motor+Planetary reducer | Panasonic servo motor+Planetary reducer | ||
| Input Voltage | Single-phase AC 220V | Single-phase AC 220V | ||
| Cut pipe length | Customized according to requirements | Customized according to requirements | ||
| Input Power | About 800W | About1000W | ||
| Disk Size | Φ250mm | Φ250mm +Connection plate | Φ250mm | Φ250mm +Connection plate |
| Tube diameter | Φ50～Φ260mm | Φ50～Φ500mm | Φ50～Φ260mm | Φ50～Φ500mm |
| Maximum pipe weight | ≤250kg | ≤1000kg | ||
| Custom information | If you have other requirements of size, weight and pipe, please contact our sales staff. We will provide you with a more comprehensive customized program | |||
| Type of cutting | Plasma cutting (need matching plasma power supply) Flame cutting can be replaced by use | |||
| Slow down ratio | 1：21（There may be changes） | 1：20（There may be changes） | ||
| Rated rotation speed | 0-10rpm（Adjustable to actual needs） | 0-15rpm（Adjustable to actual needs） | ||
| Tube ellipticity | ≤2% | |||
| Number of pipeline supports | Subject to availability | |||
| CNC control axis number | 3 axes two linkage | |||
| Cutting torch lift stroke | ≤210mm | |||
| Operation precision | ±0.2mm/m | |||
| Flame Cutting Capacity | Piercing capacity: 5-60mm Edge start cutting: 5-120mm | |||
| Plasma Cutting Capacity | Depends on the plasma source's cutting capacity | |||
| Plasma arc up | optional | |||
| Gas supply requirements | The maximum acetylene pressure or propane pressure does not exceed the 0.1Mpa | |||
| Oxygen supply requirements | Oxygen pressure maximum does not exceed the 0.7Mpa | |||
| Cutting table | Provide split design pipe cutting support frame and fixture | |||
Cutting Figure
Industry Application
