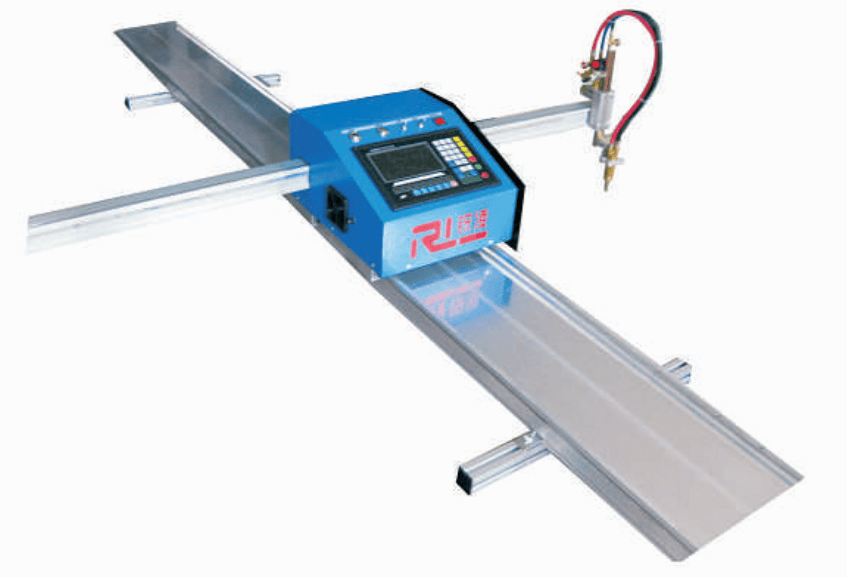

Portable CNC flame plasma cutting machine
Product parameter
| Title | Portable NC Flame Plasma cutting Machine | ||
| Type | YH-1525 | YH-1530 | YH-1535 |
| cutting range (x * y) mm | 1500*2500 | 1500*3000 | 1500*3500 |
| custom information | Guideway length (effective cutting length Y axis) can be lengthened according to user requirements | ||
| shape size | 2050*3000*600 | 2050*3500*600 | 2050*4000*600 |
| Number of sleeps | 2 pcs | 2 pcs | 2 pcs |
| input voltage | Single-phase AC 220V | ||
| Input power | About 350W | ||
| Cutting type | Plasma cutting (need matching plasma power supply) Flame cutting can be replaced by use | ||
| Driving type | Gear rack drive | ||
| Motor type | 57 series stepping motor | ||
| Running speed | 0-3000mm/ minutes (maximum 4000mm/ minutes) | ||
| Cutting torch lift stroke | ≤90mm | ||
| Operation precision | ±0.2mm/m | ||
| Flame Cutting Capacity | Piercing capacity: 5-60mm Edge start cutting: 5-120mm | ||
| Plasma Cutting Capacity | Depends on the plasma source's cutting capacity | ||
| Fire Cutting Automatic Ignition Device | Not optional | ||
| Gas supply requirements | The maximum acetylene pressure or propane pressure does not exceed the 0.1Mpa | ||
| Oxygen supply requirements | Oxygen pressure maximum does not exceed the 0.7Mpa | ||
| Cutting table | Manufacturer provides drawings, the user makes their own drawings | ||
Cutting Figure

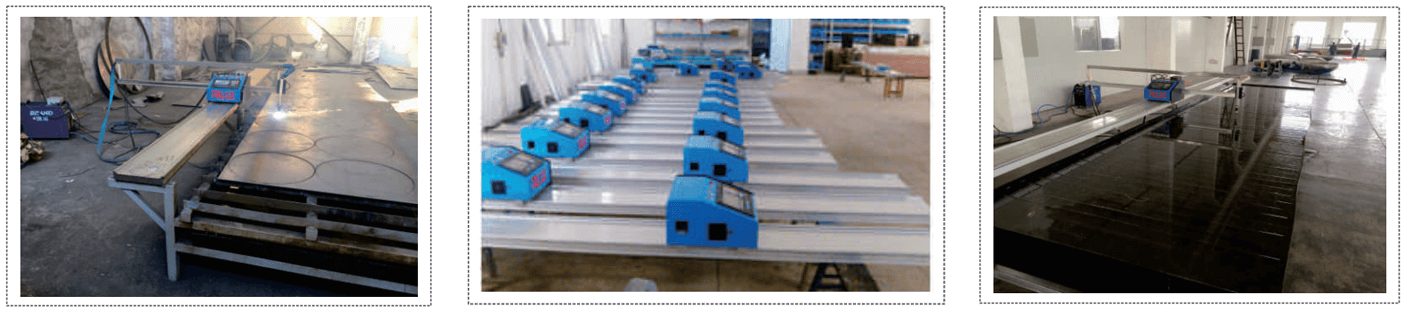

Industry Application
